  1. COMPUTE
  2. 1. Working with VM

Create a Virtual Machine from a Template

PreviousCreate a New Virtual Machine from ISONextInstall VMware Tools in a Virtual Machine

Last updated 4 months ago

Overview

To simplify creating a virtual machine (VM), you can use a pre-built VM template from a catalog.

Procedure

1

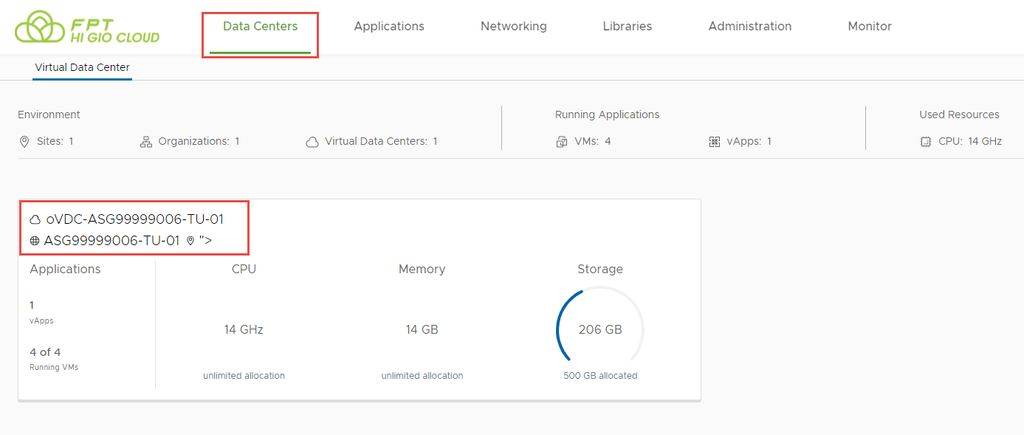

Step 1: On the Virtual Data Center dashboard screen, click the card of the virtual data center you want to explore, and from the left panel, select Virtual Machines.

2

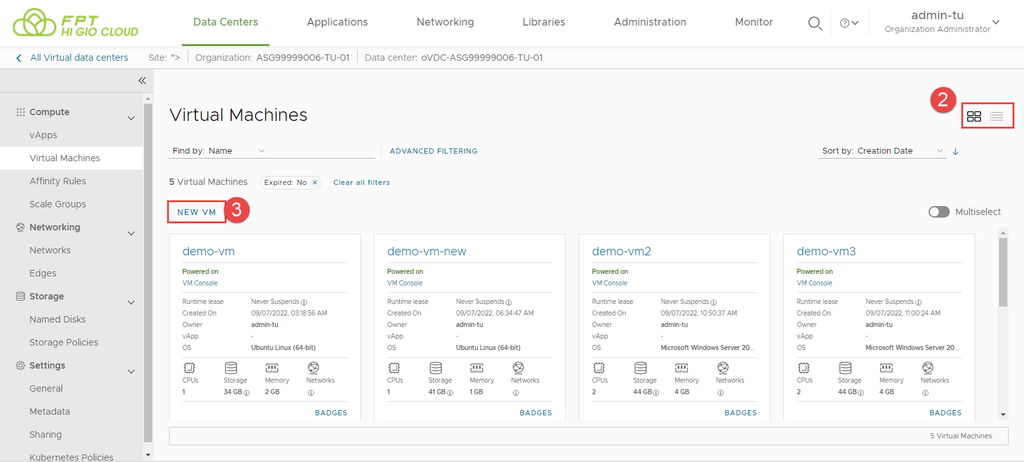

Step 2: Select Card View\Grid View to view the virtual machines

3

Step 3: Click New VM.

4

Step 4: In the New VM dialog box, enter a Name, Computer Name, and Description for your VM.

Attention:

  • Name is a name to identify the VM, Computer Name is the host name of the VM.

  • The Computer Name is copied from the Name field but can contain only alphanumeric characters and hyphens, so you may need to edit it if your VM Name contains spaces or special characters.

5

Step 5: From the Type radio buttons, select From Template.

6

Step 6: Select the Power on check-box. If you want the VM to power on right after its creation,

7

Step 7: In the Templates section, select the template you want to use for your VM, depending on your requirement (OS type and VM size).

8

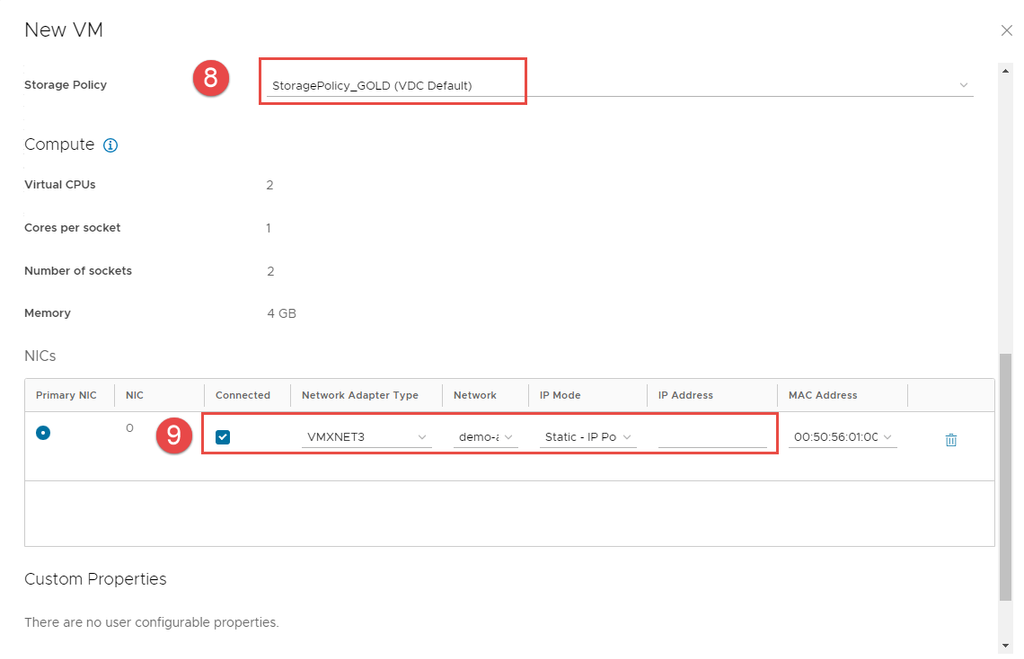

Step 8: Select Storage Policy

9

Step 9: Select Network, Network adapter Type, IP mode for VM

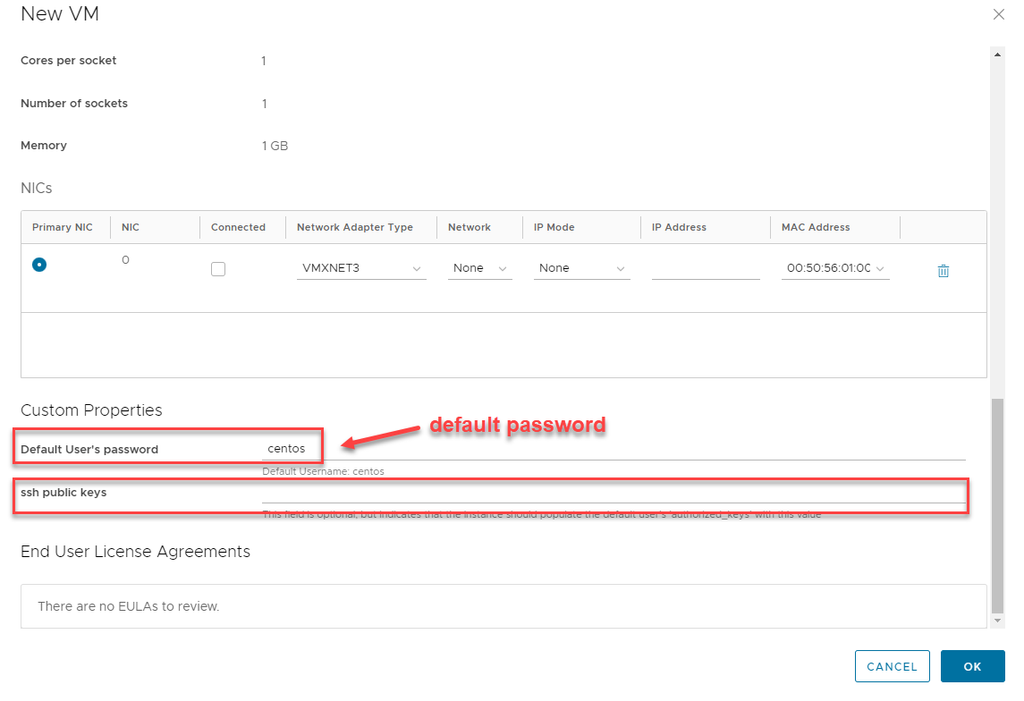

Attention: If using the Linux template, you can change the default password or SSH public key (optional)

10

Step 10: Click OK to save the virtual machine's settings and start the creation process.

Attention:

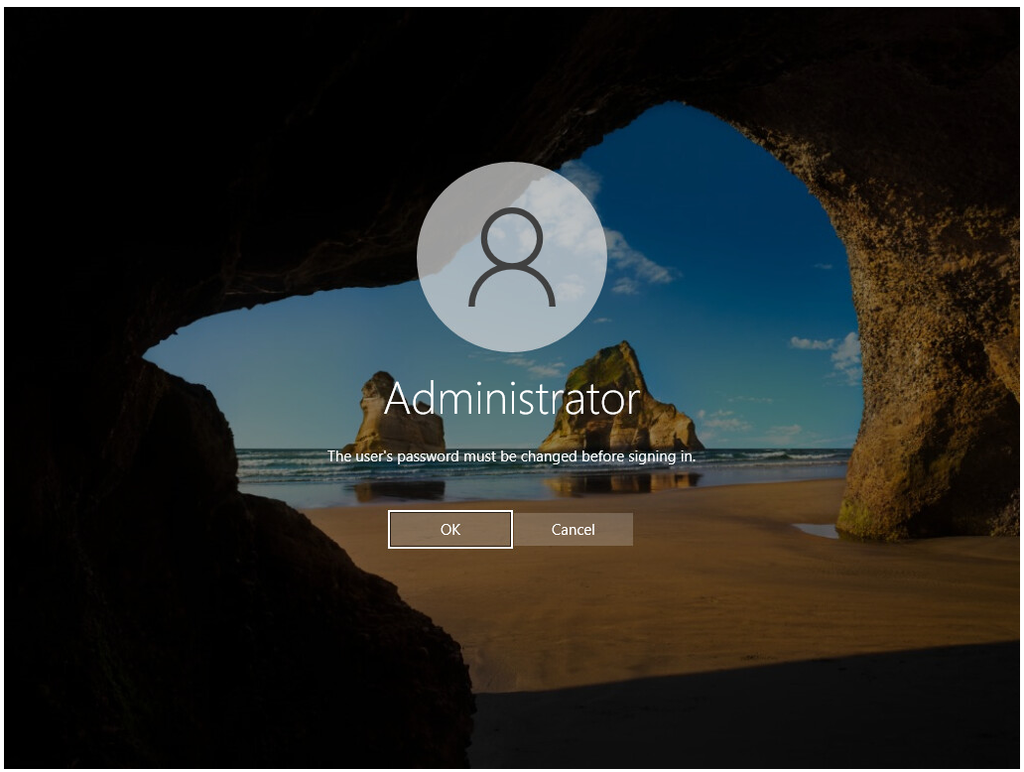

  • After the creation is completed using a Windows template, you will see this screen in the first boot.

  • Remember: DO NOT TOUCH on anything. Let it be completed by itself.

Attention:

  • Just wait for it to restart (about 3 minutes) to apply your specific configuration (IP, hostname,…).

  • When you see the Login screen, you can get control from now.
