# ENVIRONMENT

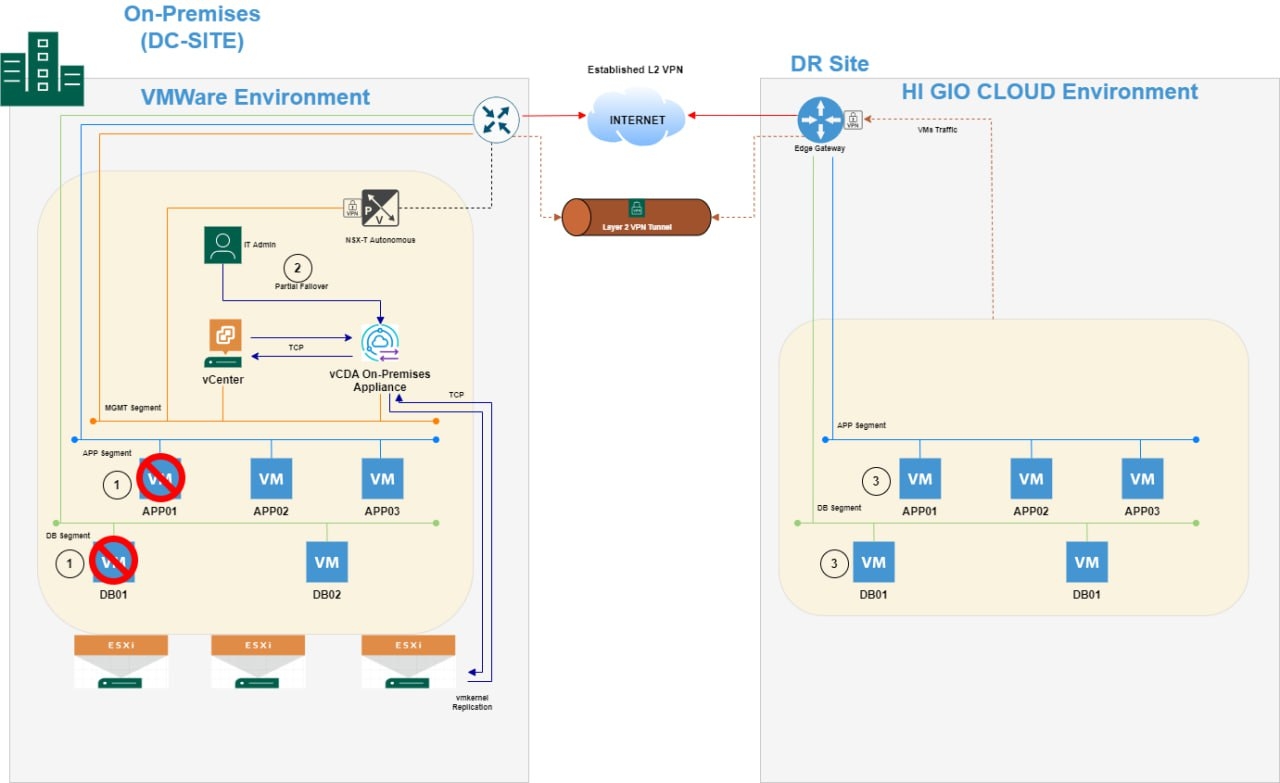

## <mark style="color:green;">Sơ đồ kiến ​​trúc</mark> <a href="#id-1.-architecture-diagram" id="id-1.-architecture-diagram"></a>

<figure><img src="/files/N15Pu6KpFB8n0hglwCvT" alt=""><figcaption></figcaption></figure>

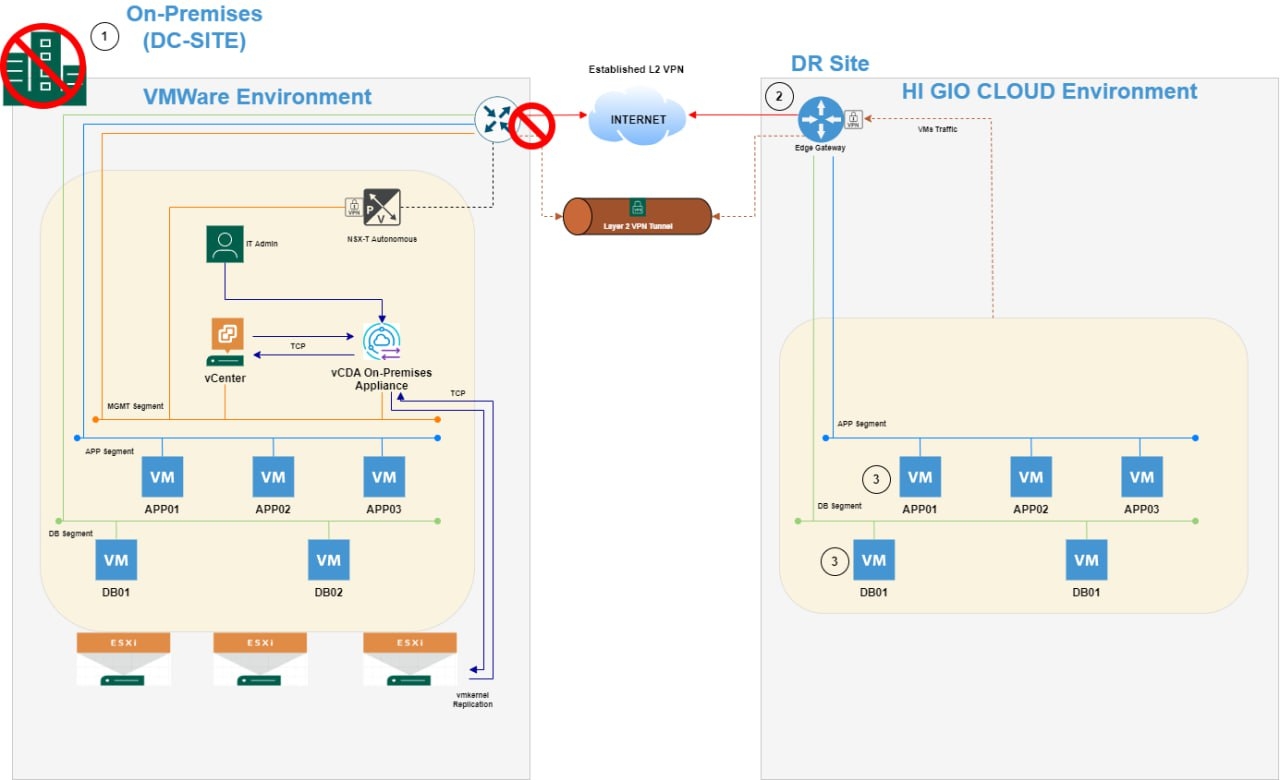

<figure><img src="/files/CihFmcYwg7VrZvajgkNN" alt=""><figcaption><p>DC site có sự cố - full failover</p></figcaption></figure>

## &#x20;<mark style="color:green;">Thông tin môi trường</mark> <a href="#id-2.-environment-information" id="id-2.-environment-information"></a>

1. **On-premises Site**&#x20;

| **No.** | **Item**         | **Description**                                | **IP Address**  | **Note** |
| ------- | ---------------- | ---------------------------------------------- | --------------- | -------- |
| **1**   | vcsa7.lab.local  | vCenter                                        | 192.168.137.77  |          |
| **2**   | vcda7.lab.local  | VMware Cloud Director Availability On-premises | 192.168.137.78  |          |
| **3**   | host16.lab.local | ESXi host                                      | 192.168.137.50  |          |
| **4**   | DC.lab.local     | Primary Domain controller                      | 192.168.137.200 |          |

2. **HI GIO Site**

|         |                      |                             |                 |          |
| ------- | -------------------- | --------------------------- | --------------- | -------- |
| **No**. | **Item**             | **Description**             | **IP Address**  | **Note** |
| 1       | ASG000001-Customer01 | Organizations               |                 |          |
| 2       | ADC.lab.local        | Secondary Domain controller | 192.168.137.201 |          |

&#x20;**3. Cấu hình hệ thống môi trường (Environment System Configuration):**

| # | **App Name**                                       | **Hostname**                                                 | **On-prem IP address**                                       | **HI GIO's Network**                                     | **HI GIO IP address**                                        | **Remark**                       |
| - | -------------------------------------------------- | ------------------------------------------------------------ | ------------------------------------------------------------ | -------------------------------------------------------- | ------------------------------------------------------------ | -------------------------------- |
| 1 | <mark style="background-color:yellow;">APP1</mark> | <mark style="background-color:yellow;">APP1.lab.local</mark> | <mark style="background-color:yellow;">192.168.140.14</mark> | <mark style="background-color:yellow;">\[L2]VM140</mark> | <mark style="background-color:yellow;">192.168.140.14</mark> | <http://app1.lab.local/Students> |
| 2 | <mark style="background-color:yellow;">APP1</mark> | <mark style="background-color:yellow;">DB1.lab.local</mark>  | <mark style="background-color:yellow;">192.168.141.14</mark> | <mark style="background-color:yellow;">\[L2]VM141</mark> | <mark style="background-color:yellow;">192.168.141.14</mark> |                                  |


---
