# Tạo L2 VPN server session (HI GIO site).

## <mark style="color:green;">**Tổng quan**</mark> <a href="#overview" id="overview"></a>

Bằng cách sử dụng giao diện quản lý trên site đám mây HI GIO, organization administrators tạo server-side của L2 VPN session, cho phép L2 stretch của một hoặc nhiều mạng trên site on-premises

## <mark style="color:green;">Quy trình</mark> <a href="#id-2.-guidance" id="id-2.-guidance"></a>

{% stepper %}
{% step %}

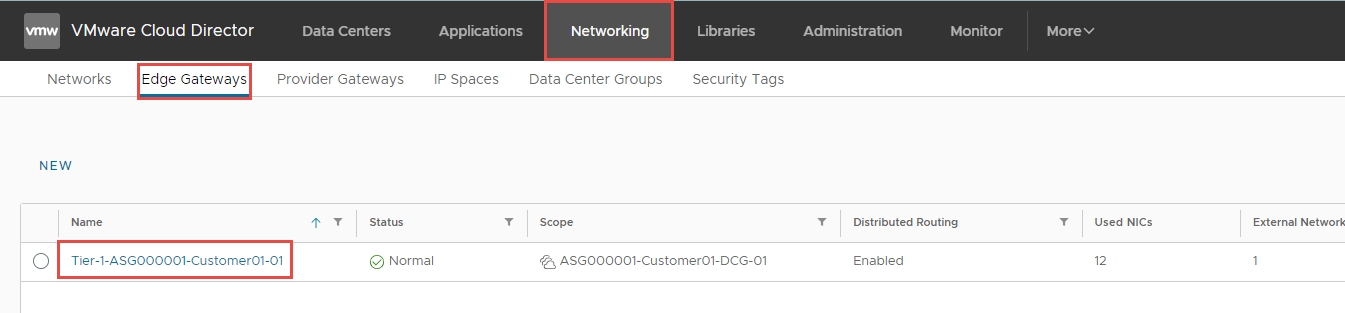

**Bước 1**: Đăng nhập vào HI GIO Portal

Chọn **Network** > **Edge Gateways** > **VPC name**

<figure><img src="https://content.gitbook.com/content/dOZ82gj0wvhbAUlxBHpj/blobs/9ZPqEjHKfxaFQx8bsPKN/image.png" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

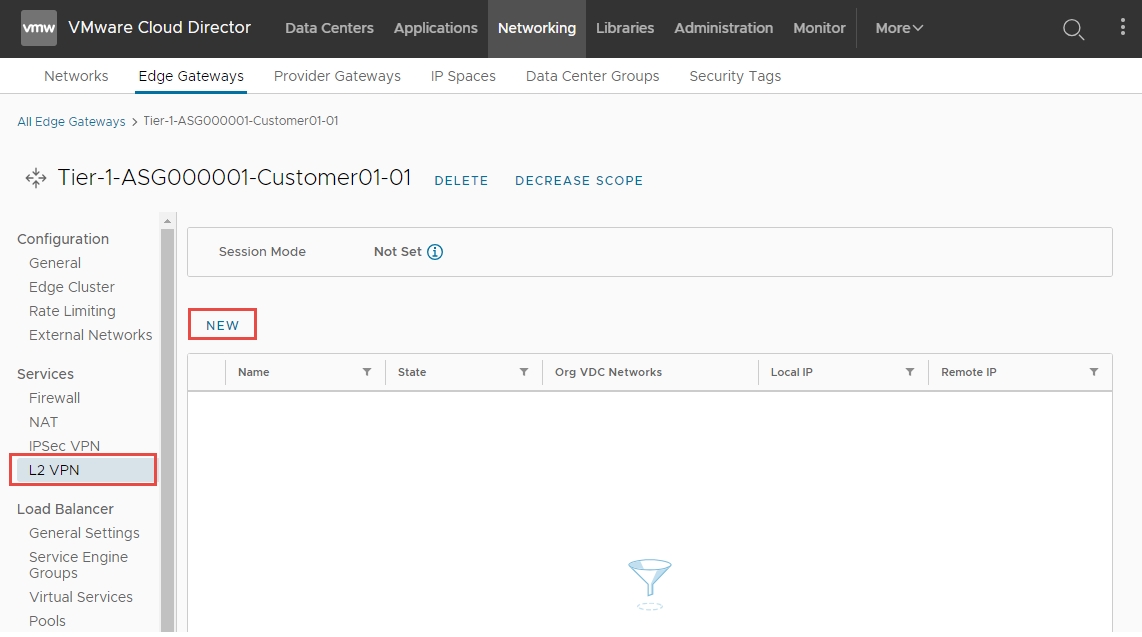

**Bước 2**: Dưới phần **Services**, nhấp **L2 VPN** > **NEW** để mở cửa sổ **L2 VPN Tunnel**.

<figure><img src="https://content.gitbook.com/content/dOZ82gj0wvhbAUlxBHpj/blobs/Nv7ynvV7bJnOsfHPLZUJ/image.png" alt=""><figcaption></figcaption></figure>

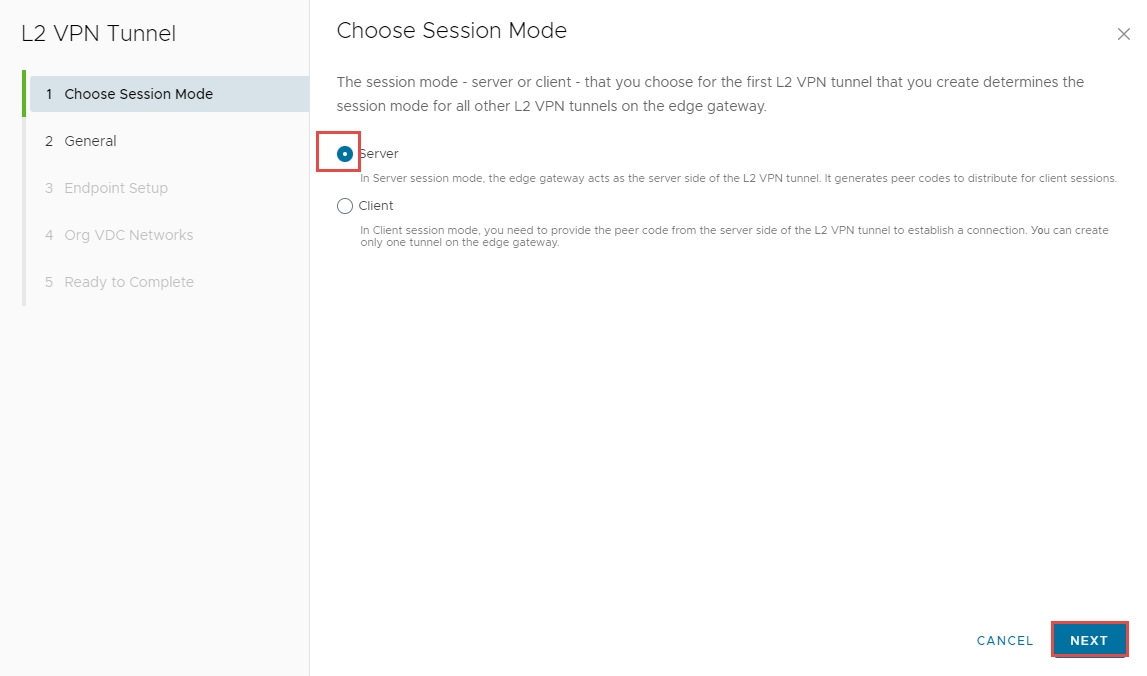

* Trên **Choose Session Mode**, chọn **Server** > nhấp **Next**.

<figure><img src="https://content.gitbook.com/content/dOZ82gj0wvhbAUlxBHpj/blobs/Ox4MfQUbWMHv8YWpWtp1/image.png" alt=""><figcaption></figcaption></figure>

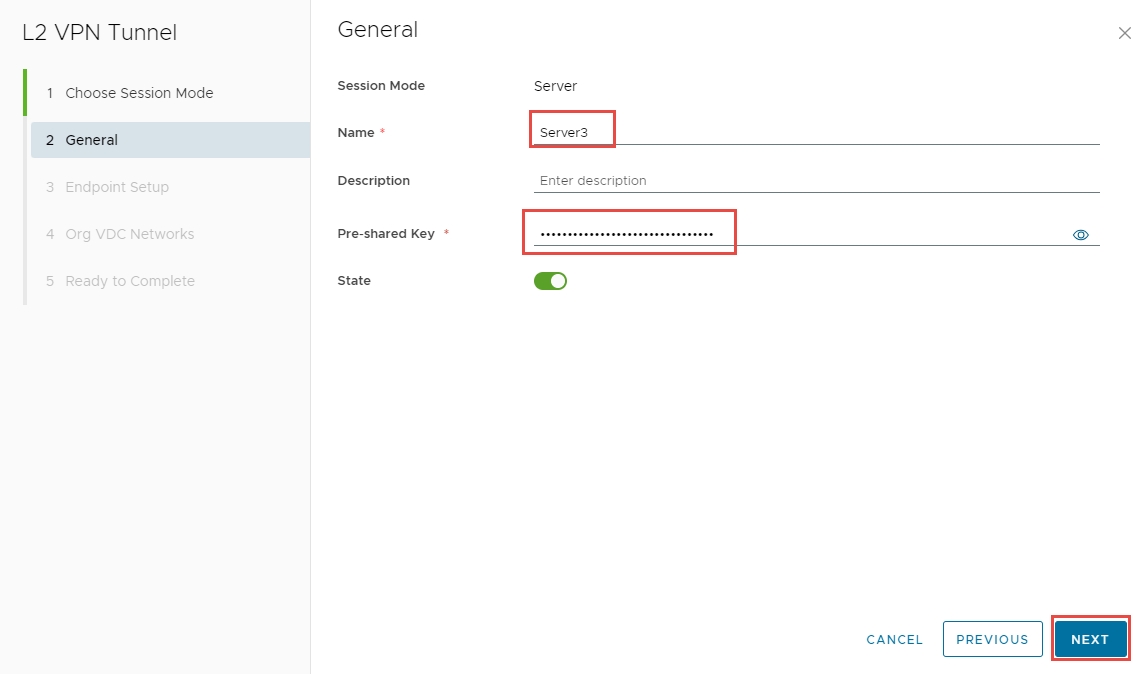

* Nhập tên và pre-shared key > nhấp **NEXT**.

<figure><img src="https://content.gitbook.com/content/dOZ82gj0wvhbAUlxBHpj/blobs/EdjzlUwH8smYtsktBUHb/image.png" alt=""><figcaption></figcaption></figure>

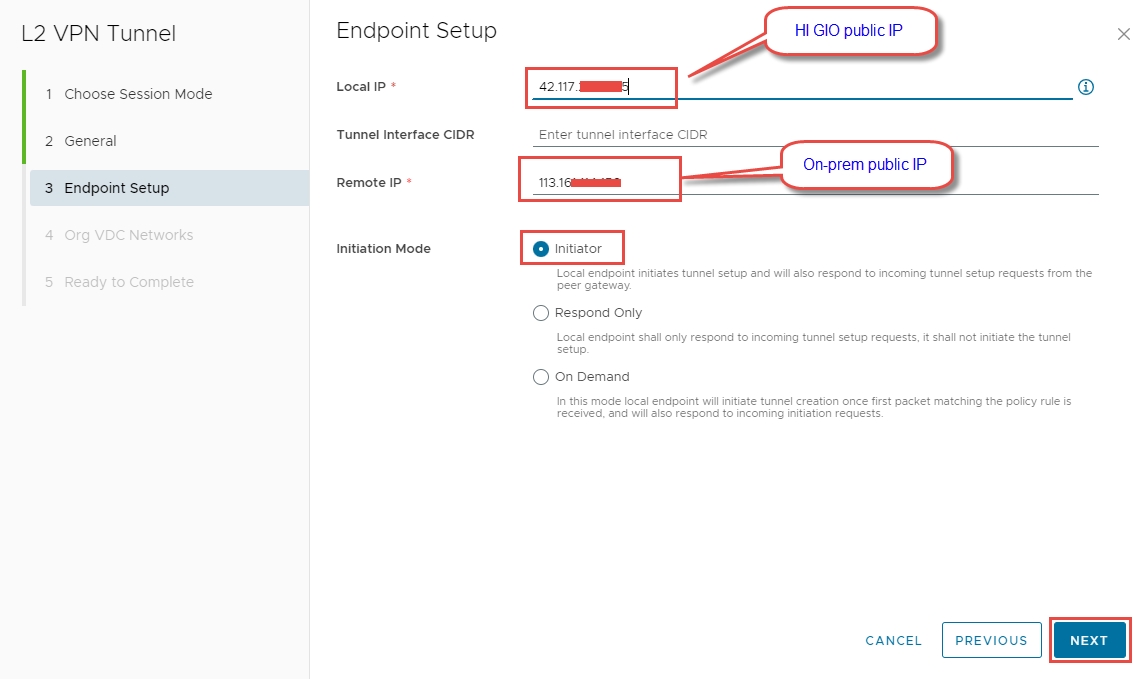

* Nhập địa chỉ IP cho **Local IP**, **Remote IP**, **Initiation Mode** > nhấp **NEXT**.

<figure><img src="https://content.gitbook.com/content/dOZ82gj0wvhbAUlxBHpj/blobs/4SWDnY322ECopcDVKmZN/image.png" alt=""><figcaption></figcaption></figure>

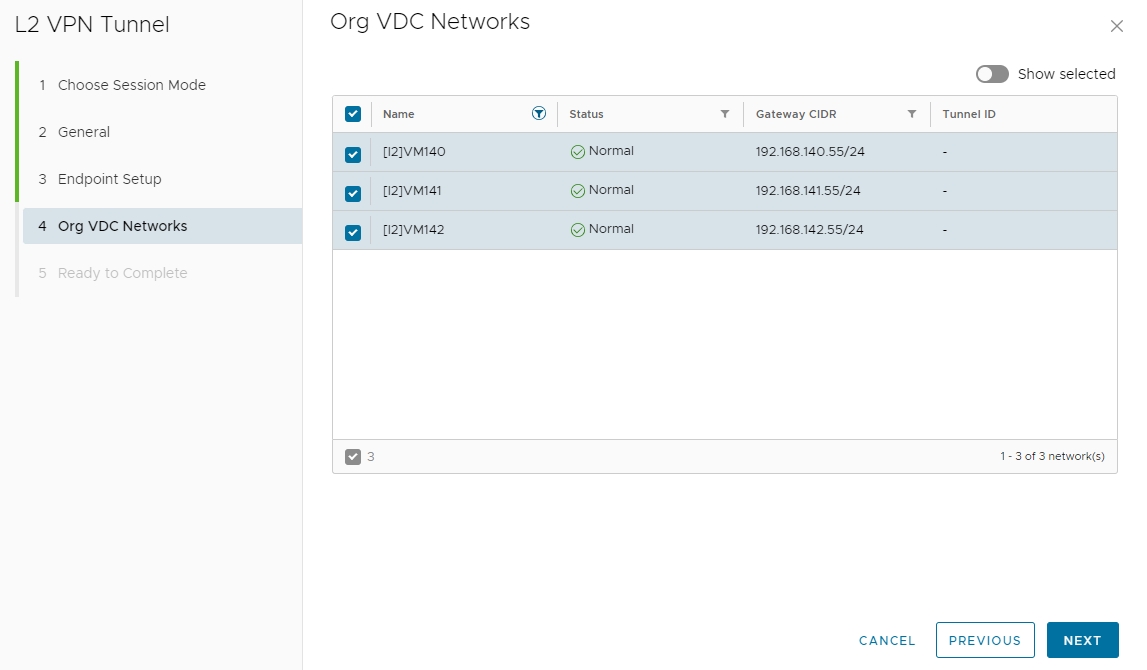

&#x20;\- Chọn **Networks** > nhấp **NEXT**.

Các mạng này đã được tạo trong giai đoạn chuẩn bị.

<figure><img src="https://content.gitbook.com/content/dOZ82gj0wvhbAUlxBHpj/blobs/2NDCa5KTnBVQEw2n9wjr/image.png" alt=""><figcaption></figcaption></figure>

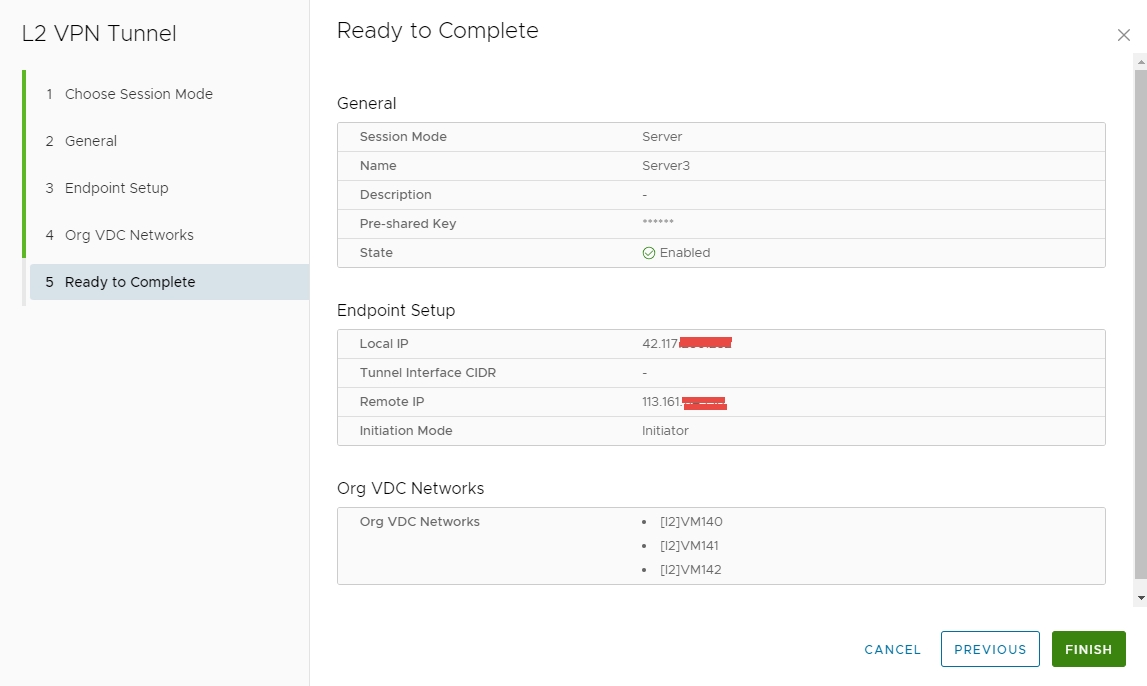

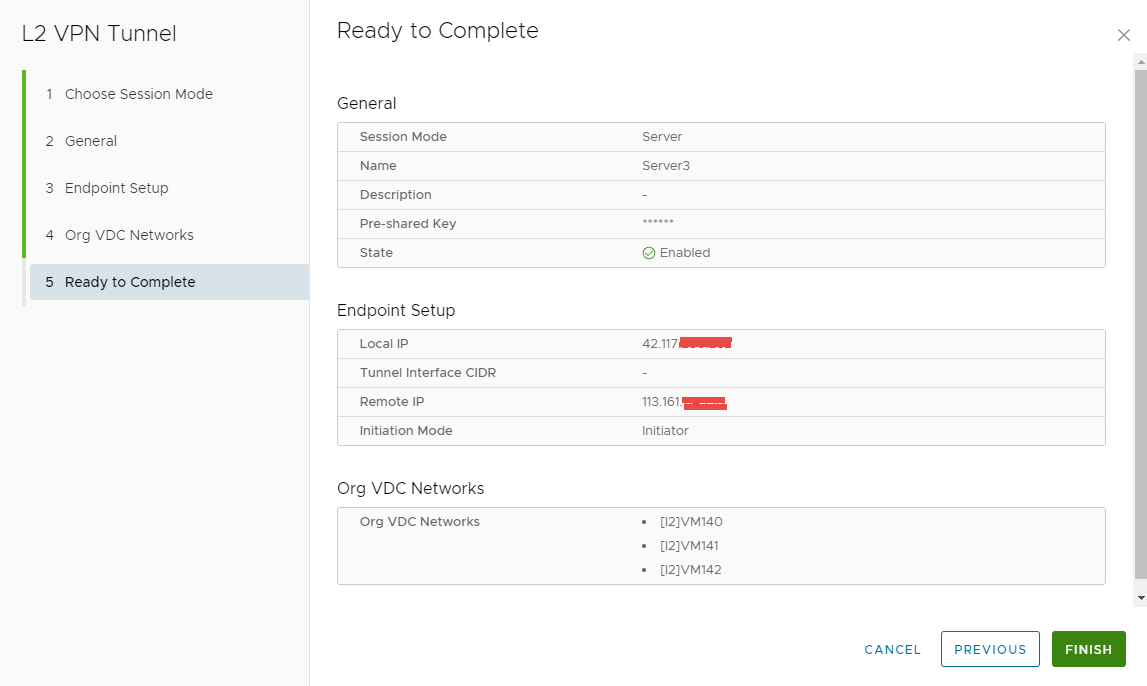

* Xem lại và nhấp **FINISH**.

<figure><img src="https://content.gitbook.com/content/dOZ82gj0wvhbAUlxBHpj/blobs/PGfjSioxZEBTa69ucsoQ/image.png" alt=""><figcaption></figcaption></figure>

Chờ vài phút.

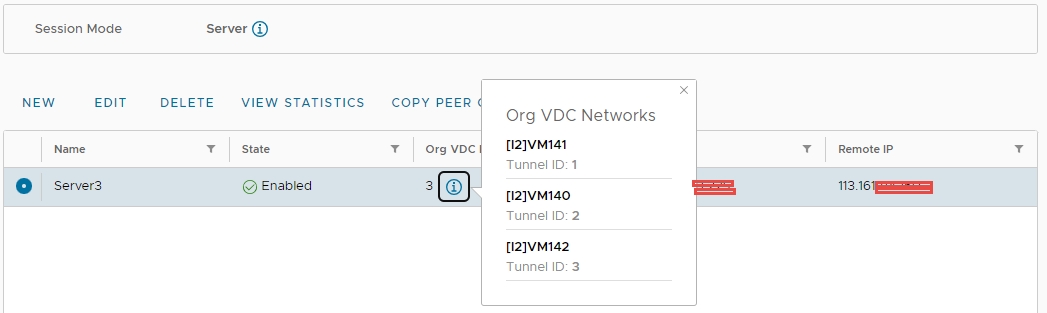

Sau khi hoàn thành, bạn sẽ thấy **tunnel IDs** (**dùng để cấu hình thủ công trên NSX Autonomous Edge).**

<figure><img src="https://content.gitbook.com/content/dOZ82gj0wvhbAUlxBHpj/blobs/vXAwRPGZQgeAOIiAN3ir/image.png" alt=""><figcaption></figcaption></figure>

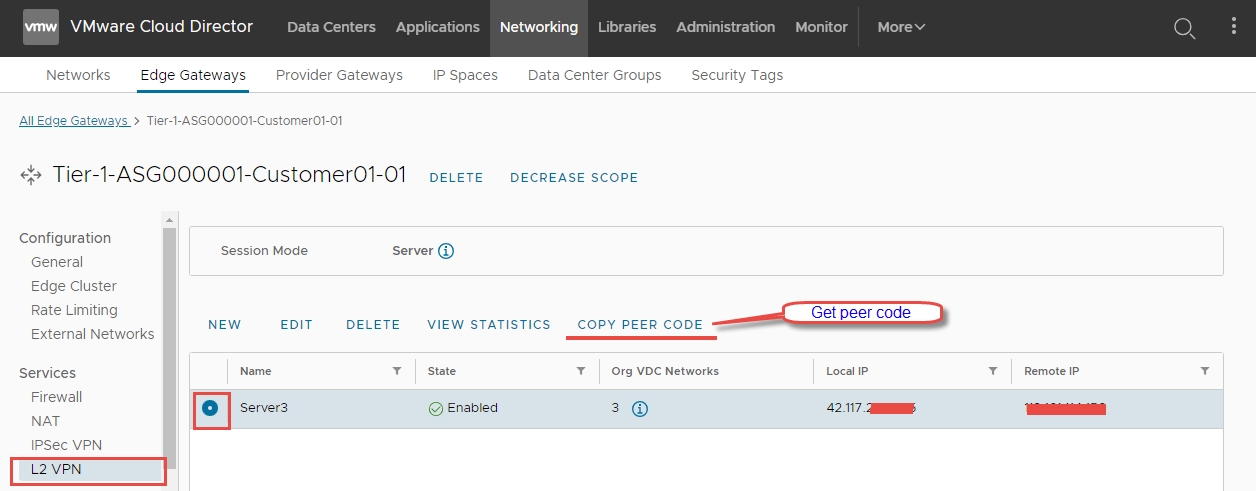

&#x20;Và sao chép **Peer code** (**dùng để cấu hình thủ công trên NSX Autonomous Edge**).

<figure><img src="https://content.gitbook.com/content/dOZ82gj0wvhbAUlxBHpj/blobs/bjIxeESmo8L07eGjr89M/image.png" alt=""><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}


---
