# Giám sát Traffic Analytics

## <mark style="color:green;">Quy trình</mark> <a href="#id-2.-guidance" id="id-2.-guidance"></a>

{% tabs %}
{% tab title="I. Giám sát lưu lượng phía Client (End User <> VIP)" %}

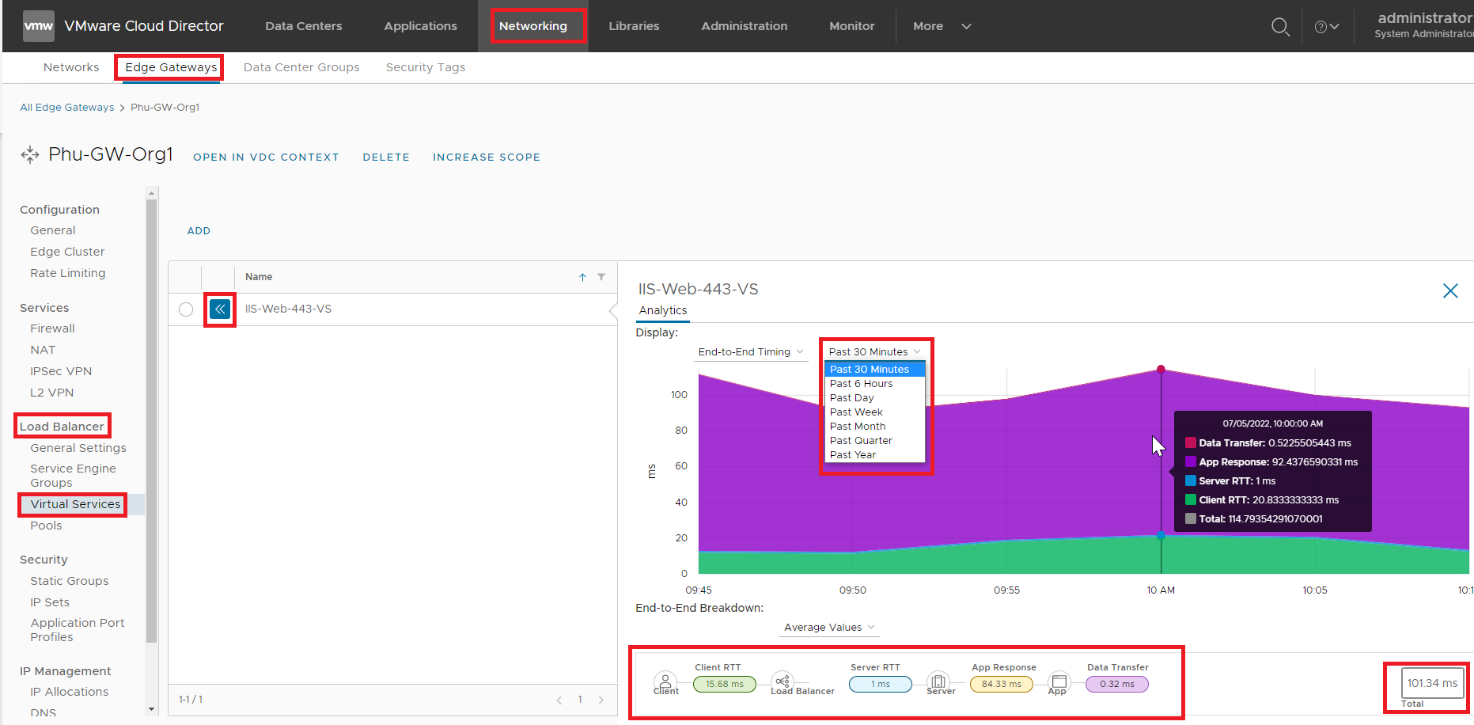

**Bước 1**: Đăng nhập vào HI GIO PORTAL với quyền Organization Administrator và truy cập

**Networking** > **Edge Gateway** > **Load Balancer** > **Virtual Services.**

**Bước 2**: Nhấn vào biểu tượng “>>” bên cạnh dịch vụ ảo (virtual service) mà bạn muốn giám sát.

HI GIO LB hỗ trợ Biểu đồ thống kê:

* *Theo thời gian (30 phút qua, 6 giờ qua,...)*

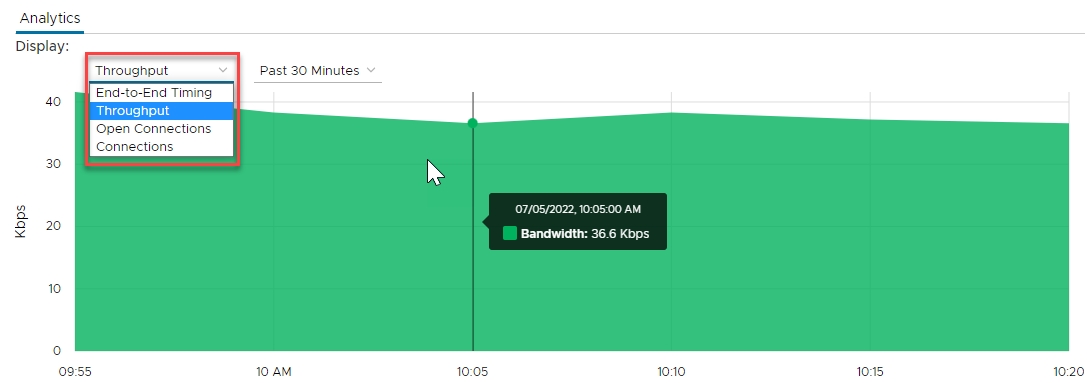

* *Application Metrics: End-to-End Timing, Throughput, Open Connection,…*

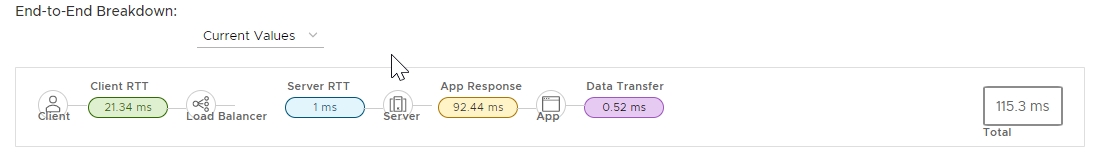

* *Total time for End-to-End RTT.*

<figure><img src="https://content.gitbook.com/content/dOZ82gj0wvhbAUlxBHpj/blobs/l3B5P8xYBIfMB3LjLvPj/image.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/dOZ82gj0wvhbAUlxBHpj/blobs/h1LGZwuCjDf9w29qsPIS/image.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/dOZ82gj0wvhbAUlxBHpj/blobs/CMPa0Ht008VAqfVj4ogE/image.png" alt=""><figcaption></figcaption></figure>
{% endtab %}

{% tab title="II. Giám sát lưu lượng phía Server (Service Engine <> Server Pool)" %}

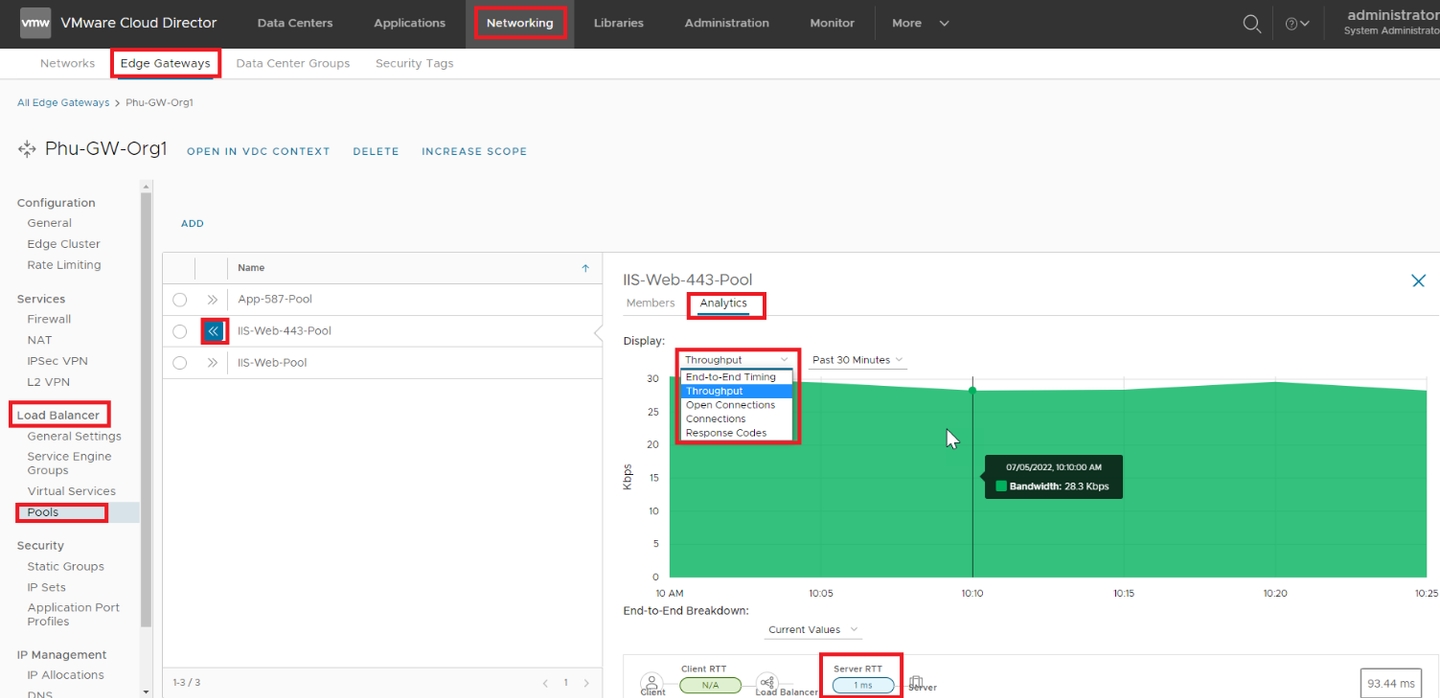

**Bước 1**: Đăng nhập vào HI GIO PORTAL với quyền Organization Administrator và truy cập

**Networking** > **Edge Gateway** > **Load Balancer** > **Pool**.

**Bước 2**: Nhấn vào biểu tượng “>>” bên cạnh Pool mà bạn muốn giám sát.

HI GIO LB hỗ trợ Biểu đồ thống kê

* *Theo thời gian (30 phút qua, 6 giờ qua,...)*
* *Application Metrics: End-to-End Timing, Throughput, Open Connection,…*
* *Total time for End-to-End RTT.*

<figure><img src="https://content.gitbook.com/content/dOZ82gj0wvhbAUlxBHpj/blobs/Ag0fcQawFWH3pRKuh0W8/image.png" alt=""><figcaption></figcaption></figure>
{% endtab %}
{% endtabs %}


---
