API reconfigures VM's Disk

Step 1: Prepare Information

Log in to IAM portal -> vCD portal: collect the information

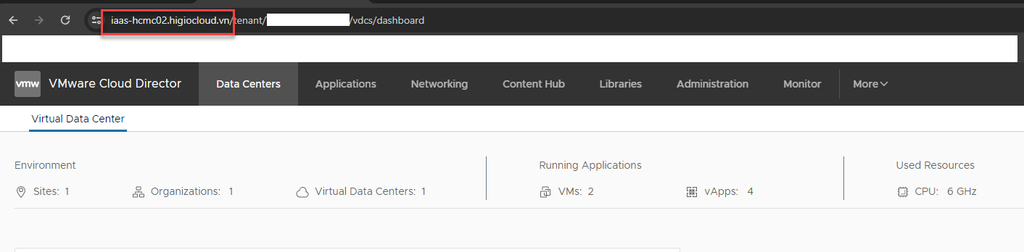

{{vcd_url}}

{{vm-uuid}}: select VM -> take a look vm uuid on url

{{Bearer Token}}: Please follow the “API token login” documen

Step 2: Getting VM’s Disk information

• GET https://{{vcd_url}}APIi/vApp/{{vm-uuid}}/virtualHardwareSection/disks

• Authorization: {{Bearer Token}}

• Headers:

- ‘Accept’: */*;version=37.2

- ‘Content-type’: application/vnd.vmware.vcloud.rasdItem+xml

Step 3: Reconfig VM’s disk

• PUT https//{{vcd_url}}APIi/vApp/{{vm-uuid}}/virtualHardwareSection/disks

• Authorization: {{Bearer Token }}

• Headers:

- 'Accept’: */*;version=37.2

- ‘Content-type’: application/vnd.vmware.vcloud.rasdItem+xml

• Body: {{select raw -> copy and paste response body from Get VM’s disk information }}

Ex:

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<RasdItemsList xmlns="http://www.vmware.com/vcloud/v1.5" xmlns:vmext="http://www.vmware.com/vcloud/extension/v1.5" xmlns:ovf="http://schemas.dmtf.org/ovf/envelope/1"
…………………………………………….
………………………………………
        <rasd:HostResource xmlns:ns10="http://www.vmware.com/vcloud/v1.5" ns10:storageProfileHref="https://iaas-hcmc02.higiocloud.vn/api/vdcStorageProfile/a7c6c2f7-3c2211e6e7b0" ns10:busType="6" ns10:busSubType="VirtualSCSI" ns10:capacity="15240" ns10:iops="4000" ns10:storageProfileOverrideVmDefault="false"></rasd:HostResource>
        <rasd:InstanceID>2000</rasd:InstanceID>
        <rasd:Limit xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:nil="true"/>
        <rasd:MappingBehavior xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:nil="true"/>
        <rasd:OtherResourceType xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:nil="true"/>
        <rasd:Parent>2</rasd:Parent>
    </Item>
</RasdItemsList>

• Find word ns10:capacity and edit the value in ,”, it’s the VM’s disk (MB)

• SEND request.

Step 4: Verify

• Get VM’s disk information

GET https://{{vcd_url}}/api/vApp/{{vm-uuid}}/virtualHardwareSection/disks

• Check on vCD portal

Login IAM -> vCD portal-> select VM-> Hard disk
