Step 6: Reprotect the VMs from On-Premises to HI GIO Cloud

Overview

After migrating over the workload to On-Premises, we can reverse the replication and reprotect it back to the HI GIO Cloud site.

Once reprotect is successful, this will show as outgoing replication from On-Premises to the Cloud.

Procedure

1

Step 1: Log on to the HI GIO portal.

2

Step 2: Expand More > Click on Availability ()

3

Step 3: Click on Outgoing Replications >Check the checkbox for vAPP1 > Expand ALL ACTIONS

4

Step 4: Click on Reverse

5

Step 5: Click on REVERSE

6

Step 6: Expectation result:

  1. The reverse from On-Premises to HI GIO Cloud Is In Progress

  1. Reverse from On-Premises to Cloud Completed Successfully. Outgoing Replications is empty now.

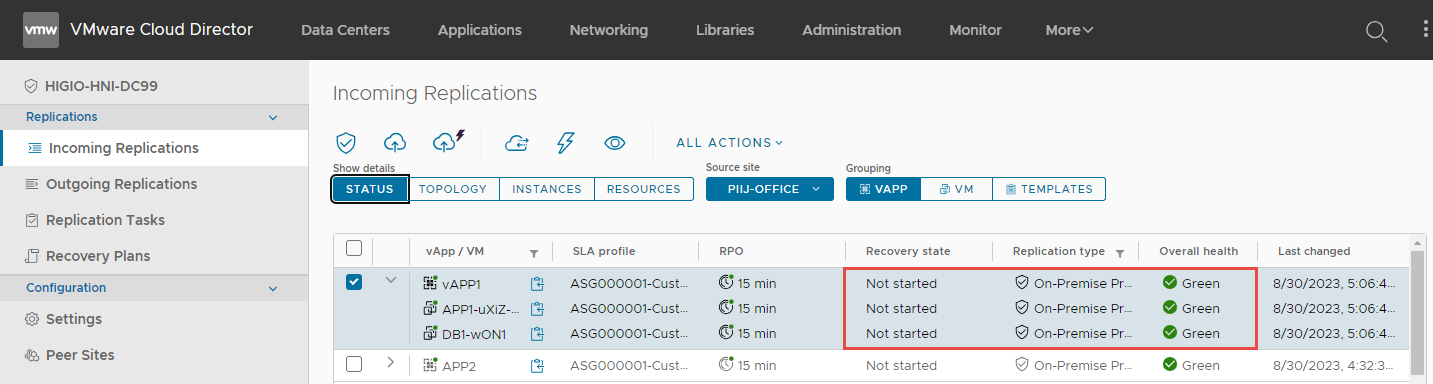

  1. Since the replication is configured from On-Premises to Cloud, we will view Incoming Replications.

Select Incoming Replications. Here, you will notice VM APP1-xxxx is replicated back from On-Premises to Cloud, and the Replication type is On-Premise Protection.

  1. Verify replication status from the On-Premises site

Expand Menu > Click on Cloud Provider DR and Migration.

Click on Outgoing Replications.

Confirm VM APP1-xxxx & DB1-xxxx is replicated back from On-Premises to Cloud and Replication type is Protection.
